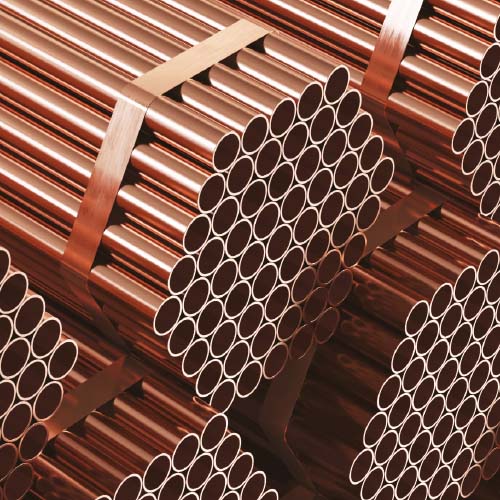

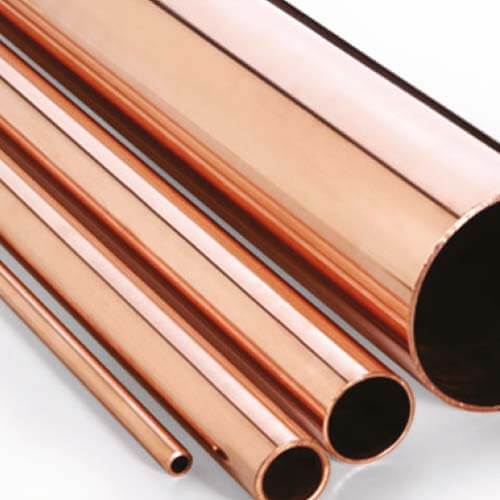

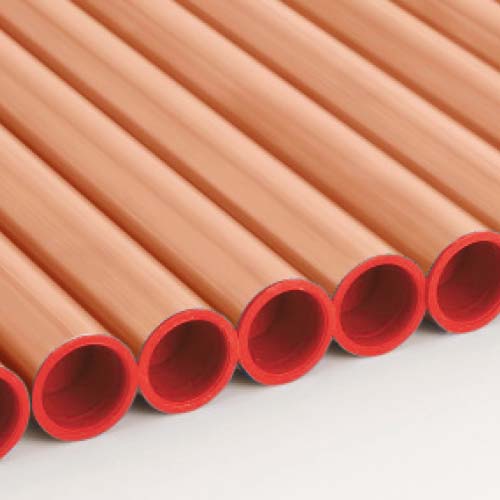

Straight Copper Tube
The straight copper tubes are used for air conditioning & refrigeration industries, electrical industries and sanitary purposes. Cu-Dhp 99,9% copper pipe (EN 12735-1) sealed ends and dehumified, R290 nonannealed and R220 annealed in straight form, high resistance to pitting corrosion.
| Soft Straight Copper Tubes Mechanical properties according to EN 12735-1 for soft copper tubes |
|||||||
|---|---|---|---|---|---|---|---|
| Temper |
Temper
designation |
Tensile strength (N/mm2
) |
Elongation (%) A5 |
Hardness HV5
(approx.) |
|||
| Soft | R220 | Min.220 | 40 | 40 -70 | |||
| Delivery conditions and packaging for soft copper tubes |
|||||||
|---|---|---|---|---|---|---|---|
| Temper designation |
Outer Diameter (mm) |
Wall thickness (mm) | Delivery Condition |
Packaging | |||
| R220 | 5 – 108 | 0,5 –2,5 | up to 6 m straight
length |
Wooden box | |||
| Hard Straight Copper Tubes Mechanical properties according to EN 12735-1 for hard copper tubes |
|||||||
|---|---|---|---|---|---|---|---|
| Temper |
Temper
designation |
Tensile strength (N/mm2) | Elongation (%) A5 |
Hardness HV5 (approx.) | |||
| Hard | R220 |
Min.220 | 40 | 40-70 | |||
| Delivery conditions and packaging for soft copper tubes |
|||||||
|---|---|---|---|---|---|---|---|
| Temper designation |
Outer Diameter (mm) |
Wall thickness (mm) |
Delivery Condition |
Packaging | |||
| R220 | 5 – 108 | 0,5 –2,5 | up to 6 m straight
length |
In Bundles, Wrapped in
Plastic foil |
|||
